Garfield::Medium Class Reference

Abstract base class for components. More...

#include <Medium.hh>

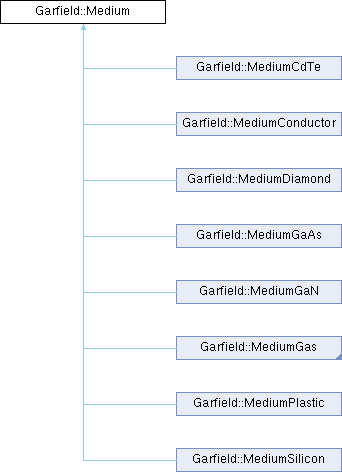

Inheritance diagram for Garfield::Medium:

Classes
struct	Secondary

Public Member Functions
	Medium ()
	Constructor.
virtual	~Medium ()
	Destructor.
int	GetId () const
	Return the id number of the class instance.
const std::string &	GetName () const
	Get the medium name/identifier.
virtual bool	IsGas () const
	Is this medium a gas?
virtual bool	IsSemiconductor () const
	Is this medium a semiconductor?
virtual bool	IsConductor () const
	Is this medium a conductor?
void	SetTemperature (const double t)
	Set the temperature [K].
double	GetTemperature () const
	Get the temperature [K].
void	SetPressure (const double p)
double	GetPressure () const
void	SetDielectricConstant (const double eps)
	Set the relative static dielectric constant.
double	GetDielectricConstant () const
	Get the relative static dielectric constant.
unsigned int	GetNumberOfComponents () const
	Get number of components of the medium.
virtual void	GetComponent (const unsigned int i, std::string &label, double &f)
	Get the name and fraction of a given component.
virtual void	SetAtomicNumber (const double z)
	Set the effective atomic number.
virtual double	GetAtomicNumber () const
	Get the effective atomic number.
virtual void	SetAtomicWeight (const double a)
	Set the effective atomic weight.
virtual double	GetAtomicWeight () const
	Get the effective atomic weight.
virtual void	SetNumberDensity (const double n)
	Set the number density [cm-3].
virtual double	GetNumberDensity () const
	Get the number density [cm-3].
virtual void	SetMassDensity (const double rho)
	Set the mass density [g/cm3].
virtual double	GetMassDensity () const
	Get the mass density [g/cm3].
virtual void	EnableDrift (const bool on=true)
	Switch electron/ion/hole transport on/off.
virtual void	EnablePrimaryIonisation (const bool on=true)
	Make the medium ionisable or non-ionisable.
bool	IsDriftable () const
	Is charge carrier transport enabled in this medium?
bool	IsMicroscopic () const
	Does the medium have electron scattering rates?
bool	IsIonisable () const
	Is charge deposition by charged particles/photon enabled in this medium?
void	SetW (const double w)
	Set the W value (average energy to produce an electron/ion or e/h pair).
double	GetW () const
	Get the W value.
void	SetFanoFactor (const double f)
	Set the Fano factor.
double	GetFanoFactor () const
	Get the Fano factor.
void	PlotVelocity (const std::string &carriers, TPad *pad)
	Plot the drift velocity as function of the electric field.
void	PlotDiffusion (const std::string &carriers, TPad *pad)
	Plot the diffusion coefficients as function of the electric field.
void	PlotTownsend (const std::string &carriers, TPad *pad)
	Plot the Townsend coefficient(s) as function of the electric field.
void	PlotAttachment (const std::string &carriers, TPad *pad)
	Plot the attachment coefficient(s) as function of the electric field.
void	PlotAlphaEta (const std::string &carriers, TPad *pad)
	Plot Townsend and attachment coefficients.
virtual bool	ElectronVelocity (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double &vx, double &vy, double &vz)
	Drift velocity [cm / ns].
virtual bool	ElectronVelocityFluxBulk (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double &wv, double &wr)
	Flux (mean velocity; shorthand: wv) and bulk (center of mass velocity; shorthand: wr) drift velocity [cm / ns].
virtual bool	ElectronDiffusion (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double &dl, double &dt)
	Longitudinal and transverse diffusion coefficients [cm1/2].
virtual bool	ElectronDiffusion (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double cov[3][3])
	Diffusion tensor: diagonal elements are the diffusion coefficients [cm] along e, btrans, e x b, off-diagonal elements are the covariances.
virtual bool	ElectronTownsend (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double &alpha)
	Ionisation coefficient [cm-1].
virtual bool	ElectronAttachment (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double &eta)
	Attachment coefficient [cm-1].
virtual bool	ElectronTOFIonisation (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double &riontof)
	TOF Ionisation rate [ns-1].
virtual bool	ElectronTOFAttachment (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double &ratttof)
	TOF Attachment Rate [ns-1].
virtual bool	ElectronLorentzAngle (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double &lor)
	Lorentz angle.
virtual double	ElectronMobility ()
	Low-field mobility [cm2 V-1 ns-1].
virtual double	GetElectronEnergy (const double px, const double py, const double pz, double &vx, double &vy, double &vz, const int band=0)
	Dispersion relation (energy vs. wave vector)
virtual void	GetElectronMomentum (const double e, double &px, double &py, double &pz, int &band)
	Sample the momentum vector for a given energy (only meaningful in semiconductors).
virtual double	GetElectronNullCollisionRate (const int band=0)
	Null-collision rate [ns-1].
virtual double	GetElectronCollisionRate (const double e, const int band=0)
	Collision rate [ns-1] for given electron energy.
virtual bool	ElectronCollision (const double e, int &type, int &level, double &e1, double &dx, double &dy, double &dz, std::vector< Secondary > &secondaries, int &band)
	Sample the collision type. Update energy and direction vector.
virtual bool	HoleVelocity (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double &vx, double &vy, double &vz)
	Drift velocity [cm / ns].
virtual bool	HoleDiffusion (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double &dl, double &dt)
	Longitudinal and transverse diffusion coefficients [cm1/2].
virtual bool	HoleDiffusion (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double cov[3][3])
	Diffusion tensor.
virtual bool	HoleTownsend (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double &alpha)
	Ionisation coefficient [cm-1].
virtual bool	HoleAttachment (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double &eta)
	Attachment coefficient [cm-1].
virtual double	HoleMobility ()
	Low-field mobility [cm2 V-1 ns-1].
virtual bool	IonVelocity (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double &vx, double &vy, double &vz)
	Ion drift velocity [cm / ns].
bool	HasIonVelocity () const
virtual bool	IonDiffusion (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double &dl, double &dt)
	Longitudinal and transverse diffusion coefficients [cm1/2].
virtual bool	IonDissociation (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double &diss)
	Dissociation coefficient.
virtual double	IonMobility ()
	Low-field ion mobility [cm2 V-1 ns-1].
virtual bool	NegativeIonVelocity (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double &vx, double &vy, double &vz)
	Negative ion drift velocity [cm / ns].
virtual double	NegativeIonMobility ()
	Low-field negative ion mobility [cm2 V-1 ns-1].
void	SetFieldGrid (double emin, double emax, const size_t ne, bool logE, double bmin=0., double bmax=0., const size_t nb=1, double amin=HalfPi, double amax=HalfPi, const size_t na=1)
	Set the range of fields to be covered by the transport tables.
void	SetFieldGrid (const std::vector< double > &efields, const std::vector< double > &bfields, const std::vector< double > &angles)
	Set the fields and E-B angles to be used in the transport tables.
void	GetFieldGrid (std::vector< double > &efields, std::vector< double > &bfields, std::vector< double > &angles)
	Get the fields and E-B angles used in the transport tables.
bool	SetElectronVelocityE (const size_t ie, const size_t ib, const size_t ia, const double v)
	Set an entry in the table of drift speeds along E.
bool	GetElectronVelocityE (const size_t ie, const size_t ib, const size_t ia, double &v)
	Get an entry in the table of drift speeds along E.
bool	SetElectronVelocityExB (const size_t ie, const size_t ib, const size_t ia, const double v)
	Set an entry in the table of drift speeds along ExB.
bool	GetElectronVelocityExB (const size_t ie, const size_t ib, const size_t ia, double &v)
	Get an entry in the table of drift speeds along ExB.
bool	SetElectronVelocityB (const size_t ie, const size_t ib, const size_t ia, const double v)
	Set an entry in the table of drift speeds along Btrans.
bool	GetElectronVelocityB (const size_t ie, const size_t ib, const size_t ia, double &v)
	Get an entry in the table of drift speeds along Btrans.
bool	SetElectronFluxVelocity (const size_t ie, const size_t ib, const size_t ia, const double v)
	Set an entry in the table of flux drift speeds.
bool	GetElectronFluxVelocity (const size_t ie, const size_t ib, const size_t ia, double &v)
	Get an entry in the table of flux drift speeds.
bool	SetElectronBulkVelocity (const size_t ie, const size_t ib, const size_t ia, const double v)
	Set an entry in the table of bulk drift speeds.
bool	GetElectronBulkVelocity (const size_t ie, const size_t ib, const size_t ia, double &v)
	Get an entry in the table of bulk drift speeds.
bool	SetElectronLongitudinalDiffusion (const size_t ie, const size_t ib, const size_t ia, const double dl)
	Set an entry in the table of longitudinal diffusion coefficients.
bool	GetElectronLongitudinalDiffusion (const size_t ie, const size_t ib, const size_t ia, double &dl)
	Get an entry in the table of longitudinal diffusion coefficients.
bool	SetElectronTransverseDiffusion (const size_t ie, const size_t ib, const size_t ia, const double dt)
	Set an entry in the table of transverse diffusion coefficients.
bool	GetElectronTransverseDiffusion (const size_t ie, const size_t ib, const size_t ia, double &dt)
	Get an entry in the table of transverse diffusion coefficients.
bool	SetElectronTownsend (const size_t ie, const size_t ib, const size_t ia, const double alpha)
	Set an entry in the table of Townsend coefficients.
bool	GetElectronTownsend (const size_t ie, const size_t ib, const size_t ia, double &alpha)
	Get an entry in the table of Townsend coefficients.
bool	SetElectronAttachment (const size_t ie, const size_t ib, const size_t ia, const double eta)
	Set an entry in the table of attachment coefficients.
bool	GetElectronAttachment (const size_t ie, const size_t ib, const size_t ia, double &eta)
	Get an entry in the table of attachment coefficients.
bool	SetElectronTOFIonisation (const size_t ie, const size_t ib, const size_t ia, const double v)
	Set an entry in the table of ionization rate of TOF.
bool	GetElectronTOFIonisation (const size_t ie, const size_t ib, const size_t ia, double &v)
	Get an entry in the table of ionization rate of TOF.
bool	SetElectronTOFAttachment (const size_t ie, const size_t ib, const size_t ia, const double v)
	Set an entry in the table of attachment rate of TOF.
bool	GetElectronTOFAttachment (const size_t ie, const size_t ib, const size_t ia, double &v)
	Get an entry in the table of attachment rate of TOF.
bool	SetElectronLorentzAngle (const size_t ie, const size_t ib, const size_t ia, const double lor)
	Set an entry in the table of Lorentz angles.
bool	GetElectronLorentzAngle (const size_t ie, const size_t ib, const size_t ia, double &lor)
	Get an entry in the table of Lorentz angles.
bool	SetHoleVelocityE (const size_t ie, const size_t ib, const size_t ia, const double v)
	Set an entry in the table of drift speeds along E.
bool	GetHoleVelocityE (const size_t ie, const size_t ib, const size_t ia, double &v)
	Get an entry in the table of drift speeds along E.
bool	SetHoleVelocityExB (const size_t ie, const size_t ib, const size_t ia, const double v)
	Set an entry in the table of drift speeds along ExB.
bool	GetHoleVelocityExB (const size_t ie, const size_t ib, const size_t ia, double &v)
	Get an entry in the table of drift speeds along ExB.
bool	SetHoleVelocityB (const size_t ie, const size_t ib, const size_t ia, const double v)
	Set an entry in the table of drift speeds along Btrans.
bool	GetHoleVelocityB (const size_t ie, const size_t ib, const size_t ia, double &v)
	Get an entry in the table of drift speeds along Btrans.
bool	SetHoleLongitudinalDiffusion (const size_t ie, const size_t ib, const size_t ia, const double dl)
	Set an entry in the table of longitudinal diffusion coefficients.
bool	GetHoleLongitudinalDiffusion (const size_t ie, const size_t ib, const size_t ia, double &dl)
	Get an entry in the table of longitudinal diffusion coefficients.
bool	SetHoleTransverseDiffusion (const size_t ie, const size_t ib, const size_t ia, const double dt)
	Set an entry in the table of transverse diffusion coefficients.
bool	GetHoleTransverseDiffusion (const size_t ie, const size_t ib, const size_t ia, double &dt)
	Get an entry in the table of transverse diffusion coefficients.
bool	SetHoleTownsend (const size_t ie, const size_t ib, const size_t ia, const double alpha)
	Set an entry in the table of Townsend coefficients.
bool	GetHoleTownsend (const size_t ie, const size_t ib, const size_t ia, double &alpha)
	Get an entry in the table of Townsend coefficients.
bool	SetHoleAttachment (const size_t ie, const size_t ib, const size_t ia, const double eta)
	Set an entry in the table of attachment coefficients.
bool	GetHoleAttachment (const size_t ie, const size_t ib, const size_t ia, double &eta)
	Get an entry in the table of attachment coefficients.
bool	SetIonMobility (const std::vector< double > &fields, const std::vector< double > &mobilities, const bool negativeIons=false)
	Initialise the table of ion mobilities from a list of electric fields and corresponding mobilities.
bool	SetIonMobility (const size_t ie, const size_t ib, const size_t ia, const double mu)
	Set an entry in the table of ion mobilities.
bool	GetIonMobility (const size_t ie, const size_t ib, const size_t ia, double &mu)
	Get an entry in the table of ion mobilities.
bool	SetIonLongitudinalDiffusion (const size_t ie, const size_t ib, const size_t ia, const double dl)
	Set an entry in the table of longitudinal diffusion coefficients.
bool	GetIonLongitudinalDiffusion (const size_t ie, const size_t ib, const size_t ia, double &dl)
	Get an entry in the table of longitudinal diffusion coefficients.
bool	SetIonTransverseDiffusion (const size_t ie, const size_t ib, const size_t ia, const double dt)
	Set an entry in the table of transverse diffusion coefficients.
bool	GetIonTransverseDiffusion (const size_t ie, const size_t ib, const size_t ia, double &dt)
	Get an entry in the table of transverse diffusion coefficients.
bool	SetIonDissociation (const size_t ie, const size_t ib, const size_t ia, const double diss)
	Set an entry in the table of dissociation coefficients.
bool	GetIonDissociation (const size_t ie, const size_t ib, const size_t ia, double &diss)
	Get an entry in the table of dissociation coefficients.
bool	SetNegativeIonMobility (const size_t ie, const size_t ib, const size_t ia, const double mu)
	Set an entry in the table of negative ion mobilities.
bool	GetNegativeIonMobility (const size_t ie, const size_t ib, const size_t ia, double &mu)
	Get an entry in the table of negative ion mobilities.
virtual void	ResetTables ()
	Reset all tables of transport parameters.
void	ResetElectronVelocity ()
void	ResetElectronDiffusion ()
void	ResetElectronTownsend ()
void	ResetElectronAttachment ()
void	ResetElectronTOFRates ()
void	ResetElectronLorentzAngle ()
void	ResetHoleVelocity ()
void	ResetHoleDiffusion ()
void	ResetHoleTownsend ()
void	ResetHoleAttachment ()
void	ResetIonMobility ()
void	ResetIonDiffusion ()
void	ResetIonDissociation ()
void	ResetNegativeIonMobility ()
void	VelocityFromMobility (const std::vector< std::vector< std::vector< double > > > &mob, std::vector< std::vector< std::vector< double > > > &vel)
void	SetExtrapolationMethodVelocity (const std::string &extrLow, const std::string &extrHigh)
	Select the extrapolation method for fields below/above the table range.
void	SetExtrapolationMethodDiffusion (const std::string &extrLow, const std::string &extrHigh)
void	SetExtrapolationMethodTownsend (const std::string &extrLow, const std::string &extrHigh)
void	SetExtrapolationMethodAttachment (const std::string &extrLow, const std::string &extrHigh)
void	SetExtrapolationMethodIonMobility (const std::string &extrLow, const std::string &extrHigh)
void	SetExtrapolationMethodIonDissociation (const std::string &extrLow, const std::string &extrHigh)
void	SetInterpolationMethodVelocity (const unsigned int intrp)
	Set the degree of polynomial interpolation (usually 2).
void	SetInterpolationMethodDiffusion (const unsigned int intrp)
void	SetInterpolationMethodTownsend (const unsigned int intrp)
void	SetInterpolationMethodAttachment (const unsigned int intrp)
void	SetInterpolationMethodIonMobility (const unsigned int intrp)
void	SetInterpolationMethodIonDissociation (const unsigned int intrp)
virtual double	ScaleElectricField (const double e) const
virtual double	UnScaleElectricField (const double e) const
virtual double	ScaleVelocity (const double v) const
virtual double	ScaleDiffusion (const double d) const
virtual double	ScaleDiffusionTensor (const double d) const
virtual double	ScaleTownsend (const double alpha) const
virtual double	ScaleAttachment (const double eta) const
virtual double	ScaleLorentzAngle (const double lor) const
virtual double	ScaleDissociation (const double diss) const
virtual bool	GetOpticalDataRange (double &emin, double &emax, const unsigned int i=0)
	Get the energy range [eV] of the available optical data.
virtual bool	GetDielectricFunction (const double e, double &eps1, double &eps2, const unsigned int i=0)
	Get the complex dielectric function at a given energy.
virtual bool	GetPhotoAbsorptionCrossSection (const double e, double &sigma, const unsigned int i=0)
virtual double	GetPhotonCollisionRate (const double e)
virtual bool	PhotonCollision (const double e, int &type, int &level, double &e1, double &ctheta, std::vector< Secondary > &secondaries)
void	EnableDebugging ()
	Switch on/off debugging messages.
void	DisableDebugging ()
virtual double	CreateGPUTransferObject (MediumGPU *&med_gpu)
	Create and initialise GPU Transfer class.

Protected Member Functions
bool	Velocity (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, const std::vector< std::vector< std::vector< double > > > &velE, const std::vector< std::vector< std::vector< double > > > &velB, const std::vector< std::vector< std::vector< double > > > &velX, const double q, double &vx, double &vy, double &vz) const
bool	VelocityFluxBulk (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, const std::vector< std::vector< std::vector< double > > > &velWv, const std::vector< std::vector< std::vector< double > > > &velWr, double &wv, double &wr) const
bool	Diffusion (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, const std::vector< std::vector< std::vector< double > > > &difL, const std::vector< std::vector< std::vector< double > > > &difT, double &dl, double &dt) const
bool	Diffusion (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, const std::vector< std::vector< std::vector< std::vector< double > > > > &diff, double cov[3][3]) const
bool	Alpha (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, const std::vector< std::vector< std::vector< double > > > &tab, unsigned int intp, const unsigned int thr, const std::pair< unsigned int, unsigned int > &extr, double &alpha) const
double	GetAngle (const double ex, const double ey, const double ez, const double bx, const double by, const double bz, const double e, const double b) const
bool	Interpolate (const double e, const double b, const double a, const std::vector< std::vector< std::vector< double > > > &table, double &y, const unsigned int intp, const std::pair< unsigned int, unsigned int > &extr, const bool logval=false) const
double	Interpolate1D (const double e, const std::vector< double > &table, const std::vector< double > &fields, const unsigned int intpMeth, const std::pair< unsigned int, unsigned int > &extr, const bool logval=false) const
bool	SetEntry (const size_t i, const size_t j, const size_t k, const std::string &fcn, std::vector< std::vector< std::vector< double > > > &tab, const double val)
bool	GetEntry (const size_t i, const size_t j, const size_t k, const std::string &fcn, const std::vector< std::vector< std::vector< double > > > &tab, double &val) const
void	SetExtrapolationMethod (const std::string &low, const std::string &high, std::pair< unsigned int, unsigned int > &extr, const std::string &fcn)
bool	GetExtrapolationIndex (std::string str, unsigned int &nb) const
size_t	SetThreshold (const std::vector< std::vector< std::vector< double > > > &tab) const
void	Clone (std::vector< std::vector< std::vector< double > > > &tab, const std::vector< double > &efields, const std::vector< double > &bfields, const std::vector< double > &angles, const unsigned int intp, const std::pair< unsigned int, unsigned int > &extr, const double init, const std::string &label)
void	Clone (std::vector< std::vector< std::vector< std::vector< double > > > > &tab, const size_t n, const std::vector< double > &efields, const std::vector< double > &bfields, const std::vector< double > &angles, const unsigned int intp, const std::pair< unsigned int, unsigned int > &extr, const double init, const std::string &label)
void	Init (const size_t nE, const size_t nB, const size_t nA, std::vector< std::vector< std::vector< double > > > &tab, const double val)
void	Init (const size_t nE, const size_t nB, const size_t nA, const size_t nT, std::vector< std::vector< std::vector< std::vector< double > > > > &tab, const double val)

Static Protected Member Functions
static void	Langevin (const double ex, const double ey, const double ez, double bx, double by, double bz, const double mu, double &vx, double &vy, double &vz)
static void	Langevin (const double ex, const double ey, const double ez, double bx, double by, double bz, const double mu, const double muH, double &vx, double &vy, double &vz)

Protected Attributes
std::string	m_className = "Medium"
unsigned int	m_nComponents = 1
std::string	m_name = ""
double	m_temperature = 293.15
double	m_pressure = 760.
double	m_epsilon = 1.
double	m_z = 1.
double	m_a = 0.
double	m_density = 0.
int	m_id
bool	m_driftable = false
bool	m_microscopic = false
bool	m_ionisable = false
double	m_w = 0.
double	m_fano = 0.
bool	m_isChanged = true
bool	m_debug = false
bool	m_tab2d = false
std::vector< double >	m_eFields
std::vector< double >	m_bFields
std::vector< double >	m_bAngles
std::vector< std::vector< std::vector< double > > >	m_eVelE
std::vector< std::vector< std::vector< double > > >	m_eVelX
std::vector< std::vector< std::vector< double > > >	m_eVelB
std::vector< std::vector< std::vector< double > > >	m_eDifL
std::vector< std::vector< std::vector< double > > >	m_eDifT
std::vector< std::vector< std::vector< double > > >	m_eAlp
std::vector< std::vector< std::vector< double > > >	m_eAtt
std::vector< std::vector< std::vector< double > > >	m_eLor
std::vector< std::vector< std::vector< double > > >	m_eVelWv
std::vector< std::vector< std::vector< double > > >	m_eVelWr
std::vector< std::vector< std::vector< double > > >	m_eRIon
std::vector< std::vector< std::vector< double > > >	m_eRAtt
std::vector< std::vector< std::vector< std::vector< double > > > >	m_eDifM
std::vector< std::vector< std::vector< double > > >	m_hVelE
std::vector< std::vector< std::vector< double > > >	m_hVelX
std::vector< std::vector< std::vector< double > > >	m_hVelB
std::vector< std::vector< std::vector< double > > >	m_hDifL
std::vector< std::vector< std::vector< double > > >	m_hDifT
std::vector< std::vector< std::vector< double > > >	m_hAlp
std::vector< std::vector< std::vector< double > > >	m_hAtt
std::vector< std::vector< std::vector< std::vector< double > > > >	m_hDifM
std::vector< std::vector< std::vector< double > > >	m_iMob
std::vector< std::vector< std::vector< double > > >	m_iVel
std::vector< std::vector< std::vector< double > > >	m_iDifL
std::vector< std::vector< std::vector< double > > >	m_iDifT
std::vector< std::vector< std::vector< double > > >	m_iDis
std::vector< std::vector< std::vector< double > > >	m_nMob
std::vector< std::vector< std::vector< double > > >	m_nVel
unsigned int	m_eThrAlp = 0
unsigned int	m_eThrAtt = 0
unsigned int	m_hThrAlp = 0
unsigned int	m_hThrAtt = 0
unsigned int	m_iThrDis = 0
std::pair< unsigned int, unsigned int >	m_extrVel = {0, 1}
std::pair< unsigned int, unsigned int >	m_extrDif = {0, 1}
std::pair< unsigned int, unsigned int >	m_extrAlp = {0, 1}
std::pair< unsigned int, unsigned int >	m_extrAtt = {0, 1}
std::pair< unsigned int, unsigned int >	m_extrLor = {0, 1}
std::pair< unsigned int, unsigned int >	m_extrMob = {0, 1}
std::pair< unsigned int, unsigned int >	m_extrDis = {0, 1}
unsigned int	m_intpVel = 2
unsigned int	m_intpDif = 2
unsigned int	m_intpAlp = 2
unsigned int	m_intpAtt = 2
unsigned int	m_intpLor = 2
unsigned int	m_intpMob = 2
unsigned int	m_intpDis = 2

Static Protected Attributes
static int	m_idCounter

Detailed Description

Abstract base class for components.

Definition at line 17 of file Medium.hh.

Constructor & Destructor Documentation

Medium()

Garfield::Medium::Medium

(

)

Constructor.

~Medium()

virtual Garfield::Medium::~Medium ( )

virtual

Destructor.

Member Function Documentation

Alpha()

bool Garfield::Medium::Alpha ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, const std::vector< std::vector< std::vector< double > > > & tab, unsigned int intp, const unsigned int thr, const std::pair< unsigned int, unsigned int > & extr, double & alpha ) const

protected

Clone() [1/2]

void Garfield::Medium::Clone ( std::vector< std::vector< std::vector< double > > > & tab, const std::vector< double > & efields, const std::vector< double > & bfields, const std::vector< double > & angles, const unsigned int intp, const std::pair< unsigned int, unsigned int > & extr, const double init, const std::string & label )

protected

Clone() [2/2]

void Garfield::Medium::Clone ( std::vector< std::vector< std::vector< std::vector< double > > > > & tab, const size_t n, const std::vector< double > & efields, const std::vector< double > & bfields, const std::vector< double > & angles, const unsigned int intp, const std::pair< unsigned int, unsigned int > & extr, const double init, const std::string & label )

protected

CreateGPUTransferObject()

virtual double Garfield::Medium::CreateGPUTransferObject ( MediumGPU *& med_gpu )

virtual

Create and initialise GPU Transfer class.

Reimplemented in Garfield::MediumGas, and Garfield::MediumMagboltz.

Diffusion() [1/2]

bool Garfield::Medium::Diffusion ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, const std::vector< std::vector< std::vector< double > > > & difL, const std::vector< std::vector< std::vector< double > > > & difT, double & dl, double & dt ) const

protected

Diffusion() [2/2]

bool Garfield::Medium::Diffusion ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, const std::vector< std::vector< std::vector< std::vector< double > > > > & diff, double cov[3][3] ) const

protected

DisableDebugging()

void Garfield::Medium::DisableDebugging ( )

inline

Definition at line 602 of file Medium.hh.

{ m_debug = false; }

ElectronAttachment()

virtual bool Garfield::Medium::ElectronAttachment ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double & eta )

virtual

Attachment coefficient [cm-1].

Reimplemented in Garfield::MediumCdTe, Garfield::MediumDiamond, Garfield::MediumGaAs, Garfield::MediumGaN, and Garfield::MediumSilicon.

ElectronCollision()

virtual bool Garfield::Medium::ElectronCollision ( const double e, int & type, int & level, double & e1, double & dx, double & dy, double & dz, std::vector< Secondary > & secondaries, int & band )

virtual

Sample the collision type. Update energy and direction vector.

Reimplemented in Garfield::MediumMagboltz, and Garfield::MediumSilicon.

ElectronDiffusion() [1/2]

virtual bool Garfield::Medium::ElectronDiffusion ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double & dl, double & dt )

virtual

Longitudinal and transverse diffusion coefficients [cm1/2].

ElectronDiffusion() [2/2]

virtual bool Garfield::Medium::ElectronDiffusion ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double cov[3][3] )

virtual

Diffusion tensor: diagonal elements are the diffusion coefficients [cm] along e, btrans, e x b, off-diagonal elements are the covariances.

ElectronLorentzAngle()

virtual bool Garfield::Medium::ElectronLorentzAngle ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double & lor )

virtual

Lorentz angle.

ElectronMobility()

virtual double Garfield::Medium::ElectronMobility ( )

virtual

Low-field mobility [cm2 V-1 ns-1].

Reimplemented in Garfield::MediumCdTe, Garfield::MediumDiamond, Garfield::MediumGaAs, Garfield::MediumGaN, and Garfield::MediumSilicon.

ElectronTOFAttachment()

virtual bool Garfield::Medium::ElectronTOFAttachment ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double & ratttof )

virtual

TOF Attachment Rate [ns-1].

ElectronTOFIonisation()

virtual bool Garfield::Medium::ElectronTOFIonisation ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double & riontof )

virtual

TOF Ionisation rate [ns-1].

ElectronTownsend()

virtual bool Garfield::Medium::ElectronTownsend ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double & alpha )

virtual

Ionisation coefficient [cm-1].

Reimplemented in Garfield::MediumCdTe, Garfield::MediumDiamond, Garfield::MediumGaAs, Garfield::MediumGaN, and Garfield::MediumSilicon.

ElectronVelocity()

virtual bool Garfield::Medium::ElectronVelocity ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double & vx, double & vy, double & vz )

virtual

Drift velocity [cm / ns].

Reimplemented in Garfield::MediumCdTe, Garfield::MediumDiamond, Garfield::MediumGaAs, Garfield::MediumGaN, and Garfield::MediumSilicon.

ElectronVelocityFluxBulk()

virtual bool Garfield::Medium::ElectronVelocityFluxBulk ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double & wv, double & wr )

virtual

Flux (mean velocity; shorthand: wv) and bulk (center of mass velocity; shorthand: wr) drift velocity [cm / ns].

EnableDebugging()

void Garfield::Medium::EnableDebugging ( )

inline

Switch on/off debugging messages.

Definition at line 601 of file Medium.hh.

{ m_debug = true; }

EnableDrift()

virtual void Garfield::Medium::EnableDrift ( const bool on = true )

inlinevirtual

Switch electron/ion/hole transport on/off.

Reimplemented in Garfield::MediumConductor, and Garfield::MediumPlastic.

Definition at line 72 of file Medium.hh.

{ m_driftable = on; }

EnablePrimaryIonisation()

virtual void Garfield::Medium::EnablePrimaryIonisation ( const bool on = true )

inlinevirtual

Make the medium ionisable or non-ionisable.

Reimplemented in Garfield::MediumConductor, and Garfield::MediumPlastic.

Definition at line 74 of file Medium.hh.

                                                             {
    m_ionisable = on;
  }

GetAngle()

double Garfield::Medium::GetAngle ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, const double e, const double b ) const

protected

GetAtomicNumber()

virtual double Garfield::Medium::GetAtomicNumber ( ) const

inlinevirtual

Get the effective atomic number.

Reimplemented in Garfield::MediumGas.

Definition at line 57 of file Medium.hh.

{ return m_z; }

GetAtomicWeight()

virtual double Garfield::Medium::GetAtomicWeight ( ) const

inlinevirtual

Get the effective atomic weight.

Reimplemented in Garfield::MediumGas.

Definition at line 61 of file Medium.hh.

{ return m_a; }

GetComponent()

virtual void Garfield::Medium::GetComponent ( const unsigned int i, std::string & label, double & f )

virtual

Get the name and fraction of a given component.

Reimplemented in Garfield::MediumCdTe, Garfield::MediumDiamond, Garfield::MediumGaAs, Garfield::MediumGaN, and Garfield::MediumGas.

GetDielectricConstant()

double Garfield::Medium::GetDielectricConstant ( ) const

inline

Get the relative static dielectric constant.

Definition at line 47 of file Medium.hh.

{ return m_epsilon; }

GetDielectricFunction()

virtual bool Garfield::Medium::GetDielectricFunction ( const double e, double & eps1, double & eps2, const unsigned int i = 0 )

virtual

Get the complex dielectric function at a given energy.

Reimplemented in Garfield::MediumSilicon.

GetElectronAttachment()

bool Garfield::Medium::GetElectronAttachment ( const size_t ie, const size_t ib, const size_t ia, double & eta )

inline

Get an entry in the table of attachment coefficients.

Definition at line 333 of file Medium.hh.

                                          {
    return GetEntry(ie, ib, ia, "ElectronAttachment", m_eAtt, eta);
  }

GetElectronBulkVelocity()

bool Garfield::Medium::GetElectronBulkVelocity ( const size_t ie, const size_t ib, const size_t ia, double & v )

inline

Get an entry in the table of bulk drift speeds.

Definition at line 293 of file Medium.hh.

                                                           {
    return GetEntry(ie, ib, ia, "ElectronBulkVelocity", m_eVelWr, v);
  }

GetElectronCollisionRate()

virtual double Garfield::Medium::GetElectronCollisionRate ( const double e, const int band = 0 )

virtual

Collision rate [ns-1] for given electron energy.

Reimplemented in Garfield::MediumMagboltz, and Garfield::MediumSilicon.

GetElectronEnergy()

virtual double Garfield::Medium::GetElectronEnergy ( const double px, const double py, const double pz, double & vx, double & vy, double & vz, const int band = 0 )

virtual

Dispersion relation (energy vs. wave vector)

Reimplemented in Garfield::MediumSilicon.

GetElectronFluxVelocity()

bool Garfield::Medium::GetElectronFluxVelocity ( const size_t ie, const size_t ib, const size_t ia, double & v )

inline

Get an entry in the table of flux drift speeds.

Definition at line 283 of file Medium.hh.

                                                           {
    return GetEntry(ie, ib, ia, "ElectronFluxVelocity", m_eVelWv, v);
  }

GetElectronLongitudinalDiffusion()

bool Garfield::Medium::GetElectronLongitudinalDiffusion ( const size_t ie, const size_t ib, const size_t ia, double & dl )

inline

Get an entry in the table of longitudinal diffusion coefficients.

Definition at line 303 of file Medium.hh.

                                                                     {
    return GetEntry(ie, ib, ia, "ElectronLongitudinalDiffusion", m_eDifL, dl);
  }

GetElectronLorentzAngle()

bool Garfield::Medium::GetElectronLorentzAngle ( const size_t ie, const size_t ib, const size_t ia, double & lor )

inline

Get an entry in the table of Lorentz angles.

Definition at line 364 of file Medium.hh.

                                                             {
    return GetEntry(ie, ib, ia, "ElectronLorentzAngle", m_eLor, lor);
  }

GetElectronMomentum()

virtual void Garfield::Medium::GetElectronMomentum ( const double e, double & px, double & py, double & pz, int & band )

virtual

Sample the momentum vector for a given energy (only meaningful in semiconductors).

Reimplemented in Garfield::MediumSilicon.

GetElectronNullCollisionRate()

virtual double Garfield::Medium::GetElectronNullCollisionRate ( const int band = 0 )

virtual

Null-collision rate [ns-1].

Reimplemented in Garfield::MediumMagboltz, and Garfield::MediumSilicon.

GetElectronTOFAttachment()

bool Garfield::Medium::GetElectronTOFAttachment ( const size_t ie, const size_t ib, const size_t ia, double & v )

inline

Get an entry in the table of attachment rate of TOF.

Definition at line 353 of file Medium.hh.

                                                            {
    return GetEntry(ie, ib, ia, "ElectronTOFAttachment", m_eRAtt, v);
  }

GetElectronTOFIonisation()

bool Garfield::Medium::GetElectronTOFIonisation ( const size_t ie, const size_t ib, const size_t ia, double & v )

inline

Get an entry in the table of ionization rate of TOF.

Definition at line 343 of file Medium.hh.

                                                            {
    return GetEntry(ie, ib, ia, "ElectronTOFIonisation", m_eRIon, v);
  }

GetElectronTownsend()

bool Garfield::Medium::GetElectronTownsend ( const size_t ie, const size_t ib, const size_t ia, double & alpha )

inline

Get an entry in the table of Townsend coefficients.

Definition at line 323 of file Medium.hh.

                                          {
    return GetEntry(ie, ib, ia, "ElectronTownsend", m_eAlp, alpha);
  }

GetElectronTransverseDiffusion()

bool Garfield::Medium::GetElectronTransverseDiffusion ( const size_t ie, const size_t ib, const size_t ia, double & dt )

inline

Get an entry in the table of transverse diffusion coefficients.

Definition at line 313 of file Medium.hh.

                                                                   {
    return GetEntry(ie, ib, ia, "ElectronTransverseDiffusion", m_eDifT, dt);
  }

GetElectronVelocityB()

bool Garfield::Medium::GetElectronVelocityB ( const size_t ie, const size_t ib, const size_t ia, double & v )

inline

Get an entry in the table of drift speeds along Btrans.

Definition at line 273 of file Medium.hh.

                                       {
    return GetEntry(ie, ib, ia, "ElectronVelocityB", m_eVelB, v);
  }

GetElectronVelocityE()

bool Garfield::Medium::GetElectronVelocityE ( const size_t ie, const size_t ib, const size_t ia, double & v )

inline

Get an entry in the table of drift speeds along E.

Definition at line 253 of file Medium.hh.

                                       {
    return GetEntry(ie, ib, ia, "ElectronVelocityE", m_eVelE, v);
  }

GetElectronVelocityExB()

bool Garfield::Medium::GetElectronVelocityExB ( const size_t ie, const size_t ib, const size_t ia, double & v )

inline

Get an entry in the table of drift speeds along ExB.

Definition at line 263 of file Medium.hh.

                                         {
    return GetEntry(ie, ib, ia, "ElectronVelocityExB", m_eVelX, v);
  }

GetEntry()

bool Garfield::Medium::GetEntry ( const size_t i, const size_t j, const size_t k, const std::string & fcn, const std::vector< std::vector< std::vector< double > > > & tab, double & val ) const

protected

GetExtrapolationIndex()

bool Garfield::Medium::GetExtrapolationIndex ( std::string str, unsigned int & nb ) const

protected

GetFanoFactor()

double Garfield::Medium::GetFanoFactor ( ) const

inline

Get the Fano factor.

Definition at line 93 of file Medium.hh.

{ return m_fano; }

GetFieldGrid()

void Garfield::Medium::GetFieldGrid	(	std::vector< double > &	efields,
		std::vector< double > &	bfields,
		std::vector< double > &	angles )

Get the fields and E-B angles used in the transport tables.

GetHoleAttachment()

bool Garfield::Medium::GetHoleAttachment ( const size_t ie, const size_t ib, const size_t ia, double & eta )

inline

Get an entry in the table of attachment coefficients.

Definition at line 436 of file Medium.hh.

                                      {
    return GetEntry(ie, ib, ia, "HoleAttachment", m_hAtt, eta);
  }

GetHoleLongitudinalDiffusion()

bool Garfield::Medium::GetHoleLongitudinalDiffusion ( const size_t ie, const size_t ib, const size_t ia, double & dl )

inline

Get an entry in the table of longitudinal diffusion coefficients.

Definition at line 406 of file Medium.hh.

                                                                 {
    return GetEntry(ie, ib, ia, "HoleLongitudinalDiffusion", m_hDifL, dl);
  }

GetHoleTownsend()

bool Garfield::Medium::GetHoleTownsend ( const size_t ie, const size_t ib, const size_t ia, double & alpha )

inline

Get an entry in the table of Townsend coefficients.

Definition at line 426 of file Medium.hh.

                                      {
    return GetEntry(ie, ib, ia, "HoleTownsend", m_hAlp, alpha);
  }

GetHoleTransverseDiffusion()

bool Garfield::Medium::GetHoleTransverseDiffusion ( const size_t ie, const size_t ib, const size_t ia, double & dt )

inline

Get an entry in the table of transverse diffusion coefficients.

Definition at line 416 of file Medium.hh.

                                                               {
    return GetEntry(ie, ib, ia, "HoleTransverseDiffusion", m_hDifT, dt);
  }

GetHoleVelocityB()

bool Garfield::Medium::GetHoleVelocityB ( const size_t ie, const size_t ib, const size_t ia, double & v )

inline

Get an entry in the table of drift speeds along Btrans.

Definition at line 395 of file Medium.hh.

                                   {
    return GetEntry(ie, ib, ia, "HoleVelocityB", m_hVelB, v);
  }

GetHoleVelocityE()

bool Garfield::Medium::GetHoleVelocityE ( const size_t ie, const size_t ib, const size_t ia, double & v )

inline

Get an entry in the table of drift speeds along E.

Definition at line 375 of file Medium.hh.

                                   {
    return GetEntry(ie, ib, ia, "HoleVelocityE", m_hVelE, v);
  }

GetHoleVelocityExB()

bool Garfield::Medium::GetHoleVelocityExB ( const size_t ie, const size_t ib, const size_t ia, double & v )

inline

Get an entry in the table of drift speeds along ExB.

Definition at line 385 of file Medium.hh.

                                     {
    return GetEntry(ie, ib, ia, "HoleVelocityExB", m_hVelX, v);
  }

GetId()

int Garfield::Medium::GetId ( ) const

inline

Return the id number of the class instance.

Definition at line 25 of file Medium.hh.

{ return m_id; }

GetIonDissociation()

bool Garfield::Medium::GetIonDissociation ( const size_t ie, const size_t ib, const size_t ia, double & diss )

inline

Get an entry in the table of dissociation coefficients.

Definition at line 483 of file Medium.hh.

                                        {
    return GetEntry(ie, ib, ia, "IonDissociation", m_iDis, diss);
  }

GetIonLongitudinalDiffusion()

bool Garfield::Medium::GetIonLongitudinalDiffusion ( const size_t ie, const size_t ib, const size_t ia, double & dl )

inline

Get an entry in the table of longitudinal diffusion coefficients.

Definition at line 463 of file Medium.hh.

                                                                {
    return GetEntry(ie, ib, ia, "IonLongitudinalDiffusion", m_iDifL, dl);
  }

GetIonMobility()

bool Garfield::Medium::GetIonMobility ( const size_t ie, const size_t ib, const size_t ia, double & mu )

inline

Get an entry in the table of ion mobilities.

Definition at line 452 of file Medium.hh.

                                  {
    return GetEntry(ie, ib, ia, "IonMobility", m_iMob, mu);
  }

GetIonTransverseDiffusion()

bool Garfield::Medium::GetIonTransverseDiffusion ( const size_t ie, const size_t ib, const size_t ia, double & dt )

inline

Get an entry in the table of transverse diffusion coefficients.

Definition at line 473 of file Medium.hh.

                                                              {
    return GetEntry(ie, ib, ia, "IonTransverseDiffusion", m_iDifT, dt);
  }

GetMassDensity()

virtual double Garfield::Medium::GetMassDensity ( ) const

virtual

Get the mass density [g/cm3].

Reimplemented in Garfield::MediumGas.

GetName()

const std::string & Garfield::Medium::GetName ( ) const

inline

Get the medium name/identifier.

Definition at line 28 of file Medium.hh.

{ return m_name; }

GetNegativeIonMobility()

bool Garfield::Medium::GetNegativeIonMobility ( const size_t ie, const size_t ib, const size_t ia, double & mu )

inline

Get an entry in the table of negative ion mobilities.

Definition at line 492 of file Medium.hh.

                                          {
    return GetEntry(ie, ib, ia, "NegativeIonMobility", m_nMob, mu);
  }

GetNumberDensity()

virtual double Garfield::Medium::GetNumberDensity ( ) const

inlinevirtual

Get the number density [cm-3].

Reimplemented in Garfield::MediumGas.

Definition at line 65 of file Medium.hh.

{ return m_density; }

GetNumberOfComponents()

unsigned int Garfield::Medium::GetNumberOfComponents ( ) const

inline

Get number of components of the medium.

Definition at line 50 of file Medium.hh.

{ return m_nComponents; }

GetOpticalDataRange()

virtual bool Garfield::Medium::GetOpticalDataRange ( double & emin, double & emax, const unsigned int i = 0 )

virtual

Get the energy range [eV] of the available optical data.

Reimplemented in Garfield::MediumSilicon.

GetPhotoAbsorptionCrossSection()

virtual bool Garfield::Medium::GetPhotoAbsorptionCrossSection ( const double e, double & sigma, const unsigned int i = 0 )

virtual

Reimplemented in Garfield::MediumGas.

GetPhotonCollisionRate()

virtual double Garfield::Medium::GetPhotonCollisionRate ( const double e )

virtual

Reimplemented in Garfield::MediumMagboltz.

GetPressure()

double Garfield::Medium::GetPressure ( ) const

inline

Definition at line 43 of file Medium.hh.

{ return m_pressure; }

GetTemperature()

double Garfield::Medium::GetTemperature ( ) const

inline

Get the temperature [K].

Definition at line 39 of file Medium.hh.

{ return m_temperature; }

GetW()

double Garfield::Medium::GetW ( ) const

inline

Get the W value.

Definition at line 89 of file Medium.hh.

{ return m_w; }

HasIonVelocity()

bool Garfield::Medium::HasIonVelocity ( ) const

inline

Definition at line 214 of file Medium.hh.

{ return !(m_iVel.empty() && m_iMob.empty()); }

HoleAttachment()

virtual bool Garfield::Medium::HoleAttachment ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double & eta )

virtual

Attachment coefficient [cm-1].

Reimplemented in Garfield::MediumCdTe, Garfield::MediumDiamond, Garfield::MediumGaAs, Garfield::MediumGaN, and Garfield::MediumSilicon.

HoleDiffusion() [1/2]

virtual bool Garfield::Medium::HoleDiffusion ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double & dl, double & dt )

virtual

Longitudinal and transverse diffusion coefficients [cm1/2].

HoleDiffusion() [2/2]

virtual bool Garfield::Medium::HoleDiffusion ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double cov[3][3] )

virtual

Diffusion tensor.

HoleMobility()

virtual double Garfield::Medium::HoleMobility ( )

virtual

Low-field mobility [cm2 V-1 ns-1].

Reimplemented in Garfield::MediumCdTe, Garfield::MediumDiamond, Garfield::MediumGaAs, Garfield::MediumGaN, and Garfield::MediumSilicon.

HoleTownsend()

virtual bool Garfield::Medium::HoleTownsend ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double & alpha )

virtual

Ionisation coefficient [cm-1].

Reimplemented in Garfield::MediumCdTe, Garfield::MediumDiamond, Garfield::MediumGaAs, Garfield::MediumGaN, and Garfield::MediumSilicon.

HoleVelocity()

virtual bool Garfield::Medium::HoleVelocity ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double & vx, double & vy, double & vz )

virtual

Drift velocity [cm / ns].

Reimplemented in Garfield::MediumCdTe, Garfield::MediumDiamond, Garfield::MediumGaAs, Garfield::MediumGaN, and Garfield::MediumSilicon.

Init() [1/2]

void Garfield::Medium::Init ( const size_t nE, const size_t nB, const size_t nA, const size_t nT, std::vector< std::vector< std::vector< std::vector< double > > > > & tab, const double val )

protected

Init() [2/2]

void Garfield::Medium::Init ( const size_t nE, const size_t nB, const size_t nA, std::vector< std::vector< std::vector< double > > > & tab, const double val )

protected

Interpolate()

bool Garfield::Medium::Interpolate ( const double e, const double b, const double a, const std::vector< std::vector< std::vector< double > > > & table, double & y, const unsigned int intp, const std::pair< unsigned int, unsigned int > & extr, const bool logval = false ) const

protected

Interpolate1D()

double Garfield::Medium::Interpolate1D ( const double e, const std::vector< double > & table, const std::vector< double > & fields, const unsigned int intpMeth, const std::pair< unsigned int, unsigned int > & extr, const bool logval = false ) const

protected

IonDiffusion()

virtual bool Garfield::Medium::IonDiffusion ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double & dl, double & dt )

virtual

Longitudinal and transverse diffusion coefficients [cm1/2].

IonDissociation()

virtual bool Garfield::Medium::IonDissociation ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double & diss )

virtual

Dissociation coefficient.

IonMobility()

virtual double Garfield::Medium::IonMobility ( )

virtual

Low-field ion mobility [cm2 V-1 ns-1].

IonVelocity()

virtual bool Garfield::Medium::IonVelocity ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double & vx, double & vy, double & vz )

virtual

Ion drift velocity [cm / ns].

IsConductor()

virtual bool Garfield::Medium::IsConductor ( ) const

inlinevirtual

Is this medium a conductor?

Reimplemented in Garfield::MediumConductor.

Definition at line 34 of file Medium.hh.

{ return false; }

IsDriftable()

bool Garfield::Medium::IsDriftable ( ) const

inline

Is charge carrier transport enabled in this medium?

Definition at line 79 of file Medium.hh.

{ return m_driftable; }

IsGas()

virtual bool Garfield::Medium::IsGas ( ) const

inlinevirtual

Is this medium a gas?

Reimplemented in Garfield::MediumGas.

Definition at line 30 of file Medium.hh.

{ return false; }

IsIonisable()

bool Garfield::Medium::IsIonisable ( ) const

inline

Is charge deposition by charged particles/photon enabled in this medium?

Definition at line 84 of file Medium.hh.

{ return m_ionisable; }

IsMicroscopic()

bool Garfield::Medium::IsMicroscopic ( ) const

inline

Does the medium have electron scattering rates?

Definition at line 81 of file Medium.hh.

{ return m_microscopic; }

IsSemiconductor()

virtual bool Garfield::Medium::IsSemiconductor ( ) const

inlinevirtual

Is this medium a semiconductor?

Reimplemented in Garfield::MediumCdTe, Garfield::MediumDiamond, Garfield::MediumGaAs, Garfield::MediumGaN, and Garfield::MediumSilicon.

Definition at line 32 of file Medium.hh.

{ return false; }

Langevin() [1/2]

void Garfield::Medium::Langevin ( const double ex, const double ey, const double ez, double bx, double by, double bz, const double mu, const double muH, double & vx, double & vy, double & vz )

staticprotected

Langevin() [2/2]

void Garfield::Medium::Langevin ( const double ex, const double ey, const double ez, double bx, double by, double bz, const double mu, double & vx, double & vy, double & vz )

staticprotected

NegativeIonMobility()

virtual double Garfield::Medium::NegativeIonMobility ( )

virtual

Low-field negative ion mobility [cm2 V-1 ns-1].

NegativeIonVelocity()

virtual bool Garfield::Medium::NegativeIonVelocity ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, double & vx, double & vy, double & vz )

virtual

Negative ion drift velocity [cm / ns].

PhotonCollision()

virtual bool Garfield::Medium::PhotonCollision ( const double e, int & type, int & level, double & e1, double & ctheta, std::vector< Secondary > & secondaries )

virtual

Reimplemented in Garfield::MediumMagboltz.

PlotAlphaEta()

void Garfield::Medium::PlotAlphaEta	(	const std::string &	carriers,
		TPad *	pad )

Plot Townsend and attachment coefficients.

PlotAttachment()

void Garfield::Medium::PlotAttachment	(	const std::string &	carriers,
		TPad *	pad )

Plot the attachment coefficient(s) as function of the electric field.

PlotDiffusion()

void Garfield::Medium::PlotDiffusion	(	const std::string &	carriers,
		TPad *	pad )

Plot the diffusion coefficients as function of the electric field.

PlotTownsend()

void Garfield::Medium::PlotTownsend	(	const std::string &	carriers,
		TPad *	pad )

Plot the Townsend coefficient(s) as function of the electric field.

PlotVelocity()

void Garfield::Medium::PlotVelocity	(	const std::string &	carriers,
		TPad *	pad )

Plot the drift velocity as function of the electric field.

ResetElectronAttachment()

void Garfield::Medium::ResetElectronAttachment ( )

inline

Definition at line 513 of file Medium.hh.

{ m_eAtt.clear(); }

ResetElectronDiffusion()

void Garfield::Medium::ResetElectronDiffusion ( )

inline

Definition at line 507 of file Medium.hh.

                                {
    m_eDifL.clear();
    m_eDifT.clear();
    m_eDifM.clear();
  }

ResetElectronLorentzAngle()

void Garfield::Medium::ResetElectronLorentzAngle ( )

inline

Definition at line 518 of file Medium.hh.

{ m_eLor.clear(); }

ResetElectronTOFRates()

void Garfield::Medium::ResetElectronTOFRates ( )

inline

Definition at line 514 of file Medium.hh.

                               {
    m_eRIon.clear();
    m_eRAtt.clear();
  }

ResetElectronTownsend()

void Garfield::Medium::ResetElectronTownsend ( )

inline

Definition at line 512 of file Medium.hh.

{ m_eAlp.clear(); }

ResetElectronVelocity()

void Garfield::Medium::ResetElectronVelocity ( )

inline

Definition at line 500 of file Medium.hh.

                               {
    m_eVelE.clear();
    m_eVelB.clear();
    m_eVelX.clear();
    m_eVelWv.clear();
    m_eVelWr.clear();
  }

ResetHoleAttachment()

void Garfield::Medium::ResetHoleAttachment ( )

inline

Definition at line 531 of file Medium.hh.

{ m_hAtt.clear(); }

ResetHoleDiffusion()

void Garfield::Medium::ResetHoleDiffusion ( )

inline

Definition at line 525 of file Medium.hh.

                            {
    m_hDifL.clear();
    m_hDifT.clear();
    m_hDifM.clear();
  }

ResetHoleTownsend()

void Garfield::Medium::ResetHoleTownsend ( )

inline

Definition at line 530 of file Medium.hh.

{ m_hAlp.clear(); }

ResetHoleVelocity()

void Garfield::Medium::ResetHoleVelocity ( )

inline

Definition at line 520 of file Medium.hh.

                           {
    m_hVelE.clear();
    m_hVelB.clear();
    m_hVelX.clear();
  }

ResetIonDiffusion()

void Garfield::Medium::ResetIonDiffusion ( )

inline

Definition at line 537 of file Medium.hh.

                           {
    m_iDifL.clear();
    m_iDifT.clear();
  }

ResetIonDissociation()

void Garfield::Medium::ResetIonDissociation ( )

inline

Definition at line 541 of file Medium.hh.

{ m_iDis.clear(); }

ResetIonMobility()

void Garfield::Medium::ResetIonMobility ( )

inline

Definition at line 533 of file Medium.hh.

                          {
    m_iMob.clear();
    m_iVel.clear();
  }

ResetNegativeIonMobility()

void Garfield::Medium::ResetNegativeIonMobility ( )

inline

Definition at line 542 of file Medium.hh.

                                  {
    m_nMob.clear();
    m_nVel.clear();
  }

ResetTables()

virtual void Garfield::Medium::ResetTables ( )

virtual

Reset all tables of transport parameters.

Reimplemented in Garfield::MediumGas.

ScaleAttachment()

virtual double Garfield::Medium::ScaleAttachment ( const double eta ) const

inlinevirtual

Reimplemented in Garfield::MediumGas.

Definition at line 581 of file Medium.hh.

{ return eta; }

ScaleDiffusion()

virtual double Garfield::Medium::ScaleDiffusion ( const double d ) const

inlinevirtual

Reimplemented in Garfield::MediumGas.

Definition at line 578 of file Medium.hh.

{ return d; }

ScaleDiffusionTensor()

virtual double Garfield::Medium::ScaleDiffusionTensor ( const double d ) const

inlinevirtual

Reimplemented in Garfield::MediumGas.

Definition at line 579 of file Medium.hh.

{ return d; }

ScaleDissociation()

virtual double Garfield::Medium::ScaleDissociation ( const double diss ) const

inlinevirtual

Definition at line 583 of file Medium.hh.

{ return diss; }

ScaleElectricField()

virtual double Garfield::Medium::ScaleElectricField ( const double e ) const

inlinevirtual

Reimplemented in Garfield::MediumGas.

Definition at line 575 of file Medium.hh.

{ return e; }

ScaleLorentzAngle()

virtual double Garfield::Medium::ScaleLorentzAngle ( const double lor ) const

inlinevirtual

Reimplemented in Garfield::MediumGas.

Definition at line 582 of file Medium.hh.

{ return lor; }

ScaleTownsend()

virtual double Garfield::Medium::ScaleTownsend ( const double alpha ) const

inlinevirtual

Reimplemented in Garfield::MediumGas.

Definition at line 580 of file Medium.hh.

{ return alpha; }

ScaleVelocity()

virtual double Garfield::Medium::ScaleVelocity ( const double v ) const

inlinevirtual

Definition at line 577 of file Medium.hh.

{ return v; }

SetAtomicNumber()

virtual void Garfield::Medium::SetAtomicNumber ( const double z )

virtual

Set the effective atomic number.

Reimplemented in Garfield::MediumGas.

SetAtomicWeight()

virtual void Garfield::Medium::SetAtomicWeight ( const double a )

virtual

Set the effective atomic weight.

Reimplemented in Garfield::MediumGas.

SetDielectricConstant()

void Garfield::Medium::SetDielectricConstant

(

const double

eps

)

Set the relative static dielectric constant.

SetElectronAttachment()

bool Garfield::Medium::SetElectronAttachment ( const size_t ie, const size_t ib, const size_t ia, const double eta )

inline

Set an entry in the table of attachment coefficients.

Definition at line 328 of file Medium.hh.

                                               {
    return SetEntry(ie, ib, ia, "ElectronAttachment", m_eAtt, eta);
  }

SetElectronBulkVelocity()

bool Garfield::Medium::SetElectronBulkVelocity ( const size_t ie, const size_t ib, const size_t ia, const double v )

inline

Set an entry in the table of bulk drift speeds.

Definition at line 288 of file Medium.hh.

                                                                {
    return SetEntry(ie, ib, ia, "ElectronBulkVelocity", m_eVelWr, v);
  }

SetElectronFluxVelocity()

bool Garfield::Medium::SetElectronFluxVelocity ( const size_t ie, const size_t ib, const size_t ia, const double v )

inline

Set an entry in the table of flux drift speeds.

Definition at line 278 of file Medium.hh.

                                                                {
    return SetEntry(ie, ib, ia, "ElectronFluxVelocity", m_eVelWv, v);
  }

SetElectronLongitudinalDiffusion()

bool Garfield::Medium::SetElectronLongitudinalDiffusion ( const size_t ie, const size_t ib, const size_t ia, const double dl )

inline

Set an entry in the table of longitudinal diffusion coefficients.

Definition at line 298 of file Medium.hh.

                                                                          {
    return SetEntry(ie, ib, ia, "ElectronLongitudinalDiffusion", m_eDifL, dl);
  }

SetElectronLorentzAngle()

bool Garfield::Medium::SetElectronLorentzAngle ( const size_t ie, const size_t ib, const size_t ia, const double lor )

inline

Set an entry in the table of Lorentz angles.

Definition at line 359 of file Medium.hh.

                                                                  {
    return SetEntry(ie, ib, ia, "ElectronLorentzAngle", m_eLor, lor);
  }

SetElectronTOFAttachment()

bool Garfield::Medium::SetElectronTOFAttachment ( const size_t ie, const size_t ib, const size_t ia, const double v )

inline

Set an entry in the table of attachment rate of TOF.

Definition at line 348 of file Medium.hh.

                                                                 {
    return SetEntry(ie, ib, ia, "ElectronTOFAttachment", m_eRAtt, v);
  }

SetElectronTOFIonisation()

bool Garfield::Medium::SetElectronTOFIonisation ( const size_t ie, const size_t ib, const size_t ia, const double v )

inline

Set an entry in the table of ionization rate of TOF.

Definition at line 338 of file Medium.hh.

                                                                 {
    return SetEntry(ie, ib, ia, "ElectronTOFIonisation", m_eRIon, v);
  }

SetElectronTownsend()

bool Garfield::Medium::SetElectronTownsend ( const size_t ie, const size_t ib, const size_t ia, const double alpha )

inline

Set an entry in the table of Townsend coefficients.

Definition at line 318 of file Medium.hh.

                                               {
    return SetEntry(ie, ib, ia, "ElectronTownsend", m_eAlp, alpha);
  }

SetElectronTransverseDiffusion()

bool Garfield::Medium::SetElectronTransverseDiffusion ( const size_t ie, const size_t ib, const size_t ia, const double dt )

inline

Set an entry in the table of transverse diffusion coefficients.

Definition at line 308 of file Medium.hh.

                                                                        {
    return SetEntry(ie, ib, ia, "ElectronTransverseDiffusion", m_eDifT, dt);
  }

SetElectronVelocityB()

bool Garfield::Medium::SetElectronVelocityB ( const size_t ie, const size_t ib, const size_t ia, const double v )

inline

Set an entry in the table of drift speeds along Btrans.

Definition at line 268 of file Medium.hh.

                                            {
    return SetEntry(ie, ib, ia, "ElectronVelocityB", m_eVelB, v);
  }

SetElectronVelocityE()

bool Garfield::Medium::SetElectronVelocityE ( const size_t ie, const size_t ib, const size_t ia, const double v )

inline

Set an entry in the table of drift speeds along E.

Definition at line 248 of file Medium.hh.

                                            {
    return SetEntry(ie, ib, ia, "ElectronVelocityE", m_eVelE, v);
  }

SetElectronVelocityExB()

bool Garfield::Medium::SetElectronVelocityExB ( const size_t ie, const size_t ib, const size_t ia, const double v )

inline

Set an entry in the table of drift speeds along ExB.

Definition at line 258 of file Medium.hh.

                                              {
    return SetEntry(ie, ib, ia, "ElectronVelocityExB", m_eVelX, v);
  }

SetEntry()

bool Garfield::Medium::SetEntry ( const size_t i, const size_t j, const size_t k, const std::string & fcn, std::vector< std::vector< std::vector< double > > > & tab, const double val )

protected

SetExtrapolationMethod()

void Garfield::Medium::SetExtrapolationMethod ( const std::string & low, const std::string & high, std::pair< unsigned int, unsigned int > & extr, const std::string & fcn )

protected

SetExtrapolationMethodAttachment()

void Garfield::Medium::SetExtrapolationMethodAttachment	(	const std::string &	extrLow,
		const std::string &	extrHigh )

SetExtrapolationMethodDiffusion()

void Garfield::Medium::SetExtrapolationMethodDiffusion	(	const std::string &	extrLow,
		const std::string &	extrHigh )

SetExtrapolationMethodIonDissociation()

void Garfield::Medium::SetExtrapolationMethodIonDissociation	(	const std::string &	extrLow,
		const std::string &	extrHigh )

SetExtrapolationMethodIonMobility()

void Garfield::Medium::SetExtrapolationMethodIonMobility	(	const std::string &	extrLow,
		const std::string &	extrHigh )

SetExtrapolationMethodTownsend()

void Garfield::Medium::SetExtrapolationMethodTownsend	(	const std::string &	extrLow,
		const std::string &	extrHigh )

SetExtrapolationMethodVelocity()

void Garfield::Medium::SetExtrapolationMethodVelocity	(	const std::string &	extrLow,
		const std::string &	extrHigh )

Select the extrapolation method for fields below/above the table range.

Possible options are "constant", "linear", and "exponential".

SetFanoFactor()

void Garfield::Medium::SetFanoFactor ( const double f )

inline

Set the Fano factor.

Definition at line 91 of file Medium.hh.

{ m_fano = f; }

SetFieldGrid() [1/2]

void Garfield::Medium::SetFieldGrid	(	const std::vector< double > &	efields,
		const std::vector< double > &	bfields,
		const std::vector< double > &	angles )

Set the fields and E-B angles to be used in the transport tables.

SetFieldGrid() [2/2]

void Garfield::Medium::SetFieldGrid	(	double	emin,
		double	emax,
		const size_t	ne,
		bool	logE,
		double	bmin = 0.,
		double	bmax = 0.,
		const size_t	nb = 1,
		double	amin = HalfPi,
		double	amax = HalfPi,
		const size_t	na = 1 )

Set the range of fields to be covered by the transport tables.

SetHoleAttachment()

bool Garfield::Medium::SetHoleAttachment ( const size_t ie, const size_t ib, const size_t ia, const double eta )

inline

Set an entry in the table of attachment coefficients.

Definition at line 431 of file Medium.hh.

                                           {
    return SetEntry(ie, ib, ia, "HoleAttachment", m_hAtt, eta);
  }

SetHoleLongitudinalDiffusion()

bool Garfield::Medium::SetHoleLongitudinalDiffusion ( const size_t ie, const size_t ib, const size_t ia, const double dl )

inline

Set an entry in the table of longitudinal diffusion coefficients.

Definition at line 401 of file Medium.hh.

                                                                      {
    return SetEntry(ie, ib, ia, "HoleLongitudinalDiffusion", m_hDifL, dl);
  }

SetHoleTownsend()

bool Garfield::Medium::SetHoleTownsend ( const size_t ie, const size_t ib, const size_t ia, const double alpha )

inline

Set an entry in the table of Townsend coefficients.

Definition at line 421 of file Medium.hh.

                                           {
    return SetEntry(ie, ib, ia, "HoleTownsend", m_hAlp, alpha);
  }

SetHoleTransverseDiffusion()

bool Garfield::Medium::SetHoleTransverseDiffusion ( const size_t ie, const size_t ib, const size_t ia, const double dt )

inline

Set an entry in the table of transverse diffusion coefficients.

Definition at line 411 of file Medium.hh.

                                                                    {
    return SetEntry(ie, ib, ia, "HoleTransverseDiffusion", m_hDifT, dt);
  }

SetHoleVelocityB()

bool Garfield::Medium::SetHoleVelocityB ( const size_t ie, const size_t ib, const size_t ia, const double v )

inline

Set an entry in the table of drift speeds along Btrans.

Definition at line 390 of file Medium.hh.

                                        {
    return SetEntry(ie, ib, ia, "HoleVelocityB", m_hVelB, v);
  }

SetHoleVelocityE()

bool Garfield::Medium::SetHoleVelocityE ( const size_t ie, const size_t ib, const size_t ia, const double v )

inline

Set an entry in the table of drift speeds along E.

Definition at line 370 of file Medium.hh.

                                        {
    return SetEntry(ie, ib, ia, "HoleVelocityE", m_hVelE, v);
  }

SetHoleVelocityExB()

bool Garfield::Medium::SetHoleVelocityExB ( const size_t ie, const size_t ib, const size_t ia, const double v )

inline

Set an entry in the table of drift speeds along ExB.

Definition at line 380 of file Medium.hh.

                                          {
    return SetEntry(ie, ib, ia, "HoleVelocityExB", m_hVelX, v);
  }

SetInterpolationMethodAttachment()

void Garfield::Medium::SetInterpolationMethodAttachment

(

const unsigned int

intrp

)

SetInterpolationMethodDiffusion()

void Garfield::Medium::SetInterpolationMethodDiffusion

(

const unsigned int

intrp

)

SetInterpolationMethodIonDissociation()

void Garfield::Medium::SetInterpolationMethodIonDissociation

(

const unsigned int

intrp

)

SetInterpolationMethodIonMobility()

void Garfield::Medium::SetInterpolationMethodIonMobility

(

const unsigned int

intrp

)

SetInterpolationMethodTownsend()

void Garfield::Medium::SetInterpolationMethodTownsend

(

const unsigned int

intrp

)

SetInterpolationMethodVelocity()

void Garfield::Medium::SetInterpolationMethodVelocity

(

const unsigned int

intrp

)

Set the degree of polynomial interpolation (usually 2).

SetIonDissociation()

bool Garfield::Medium::SetIonDissociation ( const size_t ie, const size_t ib, const size_t ia, const double diss )

inline

Set an entry in the table of dissociation coefficients.

Definition at line 478 of file Medium.hh.

                                             {
    return SetEntry(ie, ib, ia, "IonDissociation", m_iDis, diss);
  }

SetIonLongitudinalDiffusion()

bool Garfield::Medium::SetIonLongitudinalDiffusion ( const size_t ie, const size_t ib, const size_t ia, const double dl )

inline

Set an entry in the table of longitudinal diffusion coefficients.

Definition at line 458 of file Medium.hh.

                                                                     {
    return SetEntry(ie, ib, ia, "IonLongitudinalDiffusion", m_iDifL, dl);
  }

SetIonMobility() [1/2]

bool Garfield::Medium::SetIonMobility	(	const size_t	ie,
		const size_t	ib,
		const size_t	ia,
		const double	mu )

Set an entry in the table of ion mobilities.

SetIonMobility() [2/2]

bool Garfield::Medium::SetIonMobility	(	const std::vector< double > &	fields,
		const std::vector< double > &	mobilities,
		const bool	negativeIons = false )

Initialise the table of ion mobilities from a list of electric fields and corresponding mobilities.

The mobilities will be interpolated at the electric fields of the currently set grid.

SetIonTransverseDiffusion()

bool Garfield::Medium::SetIonTransverseDiffusion ( const size_t ie, const size_t ib, const size_t ia, const double dt )

inline

Set an entry in the table of transverse diffusion coefficients.

Definition at line 468 of file Medium.hh.

                                                                   {
    return SetEntry(ie, ib, ia, "IonTransverseDiffusion", m_iDifT, dt);
  }

SetMassDensity()

virtual void Garfield::Medium::SetMassDensity ( const double rho )

virtual

Set the mass density [g/cm3].

Reimplemented in Garfield::MediumGas.

SetNegativeIonMobility()

bool Garfield::Medium::SetNegativeIonMobility	(	const size_t	ie,
		const size_t	ib,
		const size_t	ia,
		const double	mu )

Set an entry in the table of negative ion mobilities.

SetNumberDensity()

virtual void Garfield::Medium::SetNumberDensity ( const double n )

virtual

Set the number density [cm-3].

Reimplemented in Garfield::MediumGas.

SetPressure()

void Garfield::Medium::SetPressure

(

const double

p

)

SetTemperature()

void Garfield::Medium::SetTemperature

(

const double

t

)

Set the temperature [K].

SetThreshold()

size_t Garfield::Medium::SetThreshold ( const std::vector< std::vector< std::vector< double > > > & tab ) const

protected

SetW()

void Garfield::Medium::SetW ( const double w )

inline

Set the W value (average energy to produce an electron/ion or e/h pair).

Definition at line 87 of file Medium.hh.

{ m_w = w; }

UnScaleElectricField()

virtual double Garfield::Medium::UnScaleElectricField ( const double e ) const

inlinevirtual

Reimplemented in Garfield::MediumGas.

Definition at line 576 of file Medium.hh.

{ return e; }

Velocity()

bool Garfield::Medium::Velocity ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, const std::vector< std::vector< std::vector< double > > > & velE, const std::vector< std::vector< std::vector< double > > > & velB, const std::vector< std::vector< std::vector< double > > > & velX, const double q, double & vx, double & vy, double & vz ) const

protected

VelocityFluxBulk()

bool Garfield::Medium::VelocityFluxBulk ( const double ex, const double ey, const double ez, const double bx, const double by, const double bz, const std::vector< std::vector< std::vector< double > > > & velWv, const std::vector< std::vector< std::vector< double > > > & velWr, double & wv, double & wr ) const

protected

VelocityFromMobility()

void Garfield::Medium::VelocityFromMobility	(	const std::vector< std::vector< std::vector< double > > > &	mob,
		std::vector< std::vector< std::vector< double > > > &	vel )

Member Data Documentation

m_a

double Garfield::Medium::m_a = 0.

protected

Definition at line 625 of file Medium.hh.

m_bAngles

std::vector<double> Garfield::Medium::m_bAngles

protected

Definition at line 654 of file Medium.hh.

m_bFields

std::vector<double> Garfield::Medium::m_bFields

protected

Definition at line 653 of file Medium.hh.

m_className

std::string Garfield::Medium::m_className = "Medium"

protected

Definition at line 608 of file Medium.hh.

m_debug

bool Garfield::Medium::m_debug = false

protected

Definition at line 646 of file Medium.hh.

m_density

double Garfield::Medium::m_density = 0.

protected

Definition at line 627 of file Medium.hh.

m_driftable

bool Garfield::Medium::m_driftable = false

protected

Definition at line 633 of file Medium.hh.

m_eAlp

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_eAlp

protected

Definition at line 662 of file Medium.hh.

m_eAtt

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_eAtt

protected

Definition at line 663 of file Medium.hh.

m_eDifL

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_eDifL

protected

Definition at line 660 of file Medium.hh.

m_eDifM

std::vector<std::vector<std::vector<std::vector<double> > > > Garfield::Medium::m_eDifM

protected

Definition at line 670 of file Medium.hh.

m_eDifT

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_eDifT

protected

Definition at line 661 of file Medium.hh.

m_eFields

std::vector<double> Garfield::Medium::m_eFields

protected

Definition at line 652 of file Medium.hh.

m_eLor

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_eLor

protected

Definition at line 664 of file Medium.hh.

m_epsilon

double Garfield::Medium::m_epsilon = 1.

protected

Definition at line 621 of file Medium.hh.

m_eRAtt

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_eRAtt

protected

Definition at line 668 of file Medium.hh.

m_eRIon

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_eRIon

protected

Definition at line 667 of file Medium.hh.

m_eThrAlp

unsigned int Garfield::Medium::m_eThrAlp = 0

protected

Definition at line 694 of file Medium.hh.

m_eThrAtt

unsigned int Garfield::Medium::m_eThrAtt = 0

protected

Definition at line 695 of file Medium.hh.

m_eVelB

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_eVelB

protected

Definition at line 659 of file Medium.hh.

m_eVelE

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_eVelE

protected

Definition at line 657 of file Medium.hh.

m_eVelWr

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_eVelWr

protected

Definition at line 666 of file Medium.hh.

m_eVelWv

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_eVelWv

protected

Definition at line 665 of file Medium.hh.

m_eVelX

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_eVelX

protected

Definition at line 658 of file Medium.hh.

m_extrAlp

std::pair<unsigned int, unsigned int> Garfield::Medium::m_extrAlp = {0, 1}

protected

Definition at line 703 of file Medium.hh.

{0, 1};

m_extrAtt

std::pair<unsigned int, unsigned int> Garfield::Medium::m_extrAtt = {0, 1}

protected

Definition at line 704 of file Medium.hh.

{0, 1};

m_extrDif

std::pair<unsigned int, unsigned int> Garfield::Medium::m_extrDif = {0, 1}

protected

Definition at line 702 of file Medium.hh.

{0, 1};

m_extrDis

std::pair<unsigned int, unsigned int> Garfield::Medium::m_extrDis = {0, 1}

protected

Definition at line 707 of file Medium.hh.

{0, 1};

m_extrLor

std::pair<unsigned int, unsigned int> Garfield::Medium::m_extrLor = {0, 1}

protected

Definition at line 705 of file Medium.hh.

{0, 1};

m_extrMob

std::pair<unsigned int, unsigned int> Garfield::Medium::m_extrMob = {0, 1}

protected

Definition at line 706 of file Medium.hh.

{0, 1};

m_extrVel

std::pair<unsigned int, unsigned int> Garfield::Medium::m_extrVel = {0, 1}

protected

Definition at line 701 of file Medium.hh.

{0, 1};

m_fano

double Garfield::Medium::m_fano = 0.

protected

Definition at line 640 of file Medium.hh.

m_hAlp

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_hAlp

protected

Definition at line 678 of file Medium.hh.

m_hAtt

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_hAtt

protected

Definition at line 679 of file Medium.hh.

m_hDifL

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_hDifL

protected

Definition at line 676 of file Medium.hh.

m_hDifM

std::vector<std::vector<std::vector<std::vector<double> > > > Garfield::Medium::m_hDifM

protected

Definition at line 681 of file Medium.hh.

m_hDifT

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_hDifT

protected

Definition at line 677 of file Medium.hh.

m_hThrAlp

unsigned int Garfield::Medium::m_hThrAlp = 0

protected

Definition at line 696 of file Medium.hh.

m_hThrAtt

unsigned int Garfield::Medium::m_hThrAtt = 0

protected

Definition at line 697 of file Medium.hh.

m_hVelB

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_hVelB

protected

Definition at line 675 of file Medium.hh.

m_hVelE

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_hVelE

protected

Definition at line 673 of file Medium.hh.

m_hVelX

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_hVelX

protected

Definition at line 674 of file Medium.hh.

m_id

int Garfield::Medium::m_id

protected

Definition at line 630 of file Medium.hh.

m_idCounter

int Garfield::Medium::m_idCounter

staticprotected

Definition at line 610 of file Medium.hh.

m_iDifL

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_iDifL

protected

Definition at line 686 of file Medium.hh.

m_iDifT

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_iDifT

protected

Definition at line 687 of file Medium.hh.

m_iDis

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_iDis

protected

Definition at line 688 of file Medium.hh.

m_iMob

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_iMob

protected

Definition at line 684 of file Medium.hh.

m_intpAlp

unsigned int Garfield::Medium::m_intpAlp = 2

protected

Definition at line 712 of file Medium.hh.

m_intpAtt

unsigned int Garfield::Medium::m_intpAtt = 2

protected

Definition at line 713 of file Medium.hh.

m_intpDif

unsigned int Garfield::Medium::m_intpDif = 2

protected

Definition at line 711 of file Medium.hh.

m_intpDis

unsigned int Garfield::Medium::m_intpDis = 2

protected

Definition at line 716 of file Medium.hh.

m_intpLor

unsigned int Garfield::Medium::m_intpLor = 2

protected

Definition at line 714 of file Medium.hh.

m_intpMob

unsigned int Garfield::Medium::m_intpMob = 2

protected

Definition at line 715 of file Medium.hh.

m_intpVel

unsigned int Garfield::Medium::m_intpVel = 2

protected

Definition at line 710 of file Medium.hh.

m_ionisable

bool Garfield::Medium::m_ionisable = false

protected

Definition at line 635 of file Medium.hh.

m_isChanged

bool Garfield::Medium::m_isChanged = true

protected

Definition at line 643 of file Medium.hh.

m_iThrDis

unsigned int Garfield::Medium::m_iThrDis = 0

protected

Definition at line 698 of file Medium.hh.

m_iVel

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_iVel

protected

Definition at line 685 of file Medium.hh.

m_microscopic

bool Garfield::Medium::m_microscopic = false

protected

Definition at line 634 of file Medium.hh.

m_name

std::string Garfield::Medium::m_name = ""

protected

Definition at line 615 of file Medium.hh.

m_nComponents

unsigned int Garfield::Medium::m_nComponents = 1

protected

Definition at line 613 of file Medium.hh.

m_nMob

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_nMob

protected

Definition at line 690 of file Medium.hh.

m_nVel

std::vector<std::vector<std::vector<double> > > Garfield::Medium::m_nVel

protected

Definition at line 691 of file Medium.hh.

m_pressure

double Garfield::Medium::m_pressure = 760.

protected

Definition at line 619 of file Medium.hh.

m_tab2d

bool Garfield::Medium::m_tab2d = false

protected

Definition at line 649 of file Medium.hh.

m_temperature

double Garfield::Medium::m_temperature = 293.15

protected

Definition at line 617 of file Medium.hh.

m_w

double Garfield::Medium::m_w = 0.

protected

Definition at line 638 of file Medium.hh.

m_z

double Garfield::Medium::m_z = 1.

protected

Definition at line 623 of file Medium.hh.

---

The documentation for this class was generated from the following file:

• /builds/garfield/docs/source/Include/Garfield/Medium.hh
